Guest Accounts not receiving email notifications

In truth, this blog could have been called anything.  Probably the Guest Account dilemma, but I have used that kind of title a few times now, none the less – it is a dilemma.  This is a blog I have been wanting to write for ages, because it has bitten us so many times.  We’re sure Microsoft will come up with a fix for this in time, they usually do, but this one has been around a long time now.

If you have experienced the situation where you have added a Guest to a Team, or SharePoint resource and the recipient doesn’t receive the Invite, or you are creating Calendar events directly in Teams by inviting a Team Channel and again the recipients are not receiving the invites, you may be experiencing the issue I’m about to outline below.

I’m not going to go into the different types of Guest Accounts and how sharing and collaboration works in Office 365, but more about this specific issue.

Here is just a re-cap on Guest Account Types you will see.

• External Azure Active Directory: This user is homed in an external organization and authenticates by using an Azure AD account that belongs to the other organization.
• Microsoft account: This user is homed in a Microsoft account and authenticates by using a Microsoft account.
• OTP: The Email one-time passcode feature authenticates B2B guest users when they can’t be authenticated through other means like Azure AD, a Microsoft account (MSA), or Google federation.
• Invited User: This user has been invited but has not yet redeemed an invitation
• Multiple: Sometimes you might see Multiple as well (You probably want to clean them up)

The Invited user is of interest, because sometimes Guest just don’t receive the Invitation

Creating Guest Accounts

When you create a Guest Account in Azure Active Directory, or invite a new Guest user to a Team (which in turn creates the Guest account in Azure Active Directory) the object is a short time later sync’d to Exchange Online as a MailUser.  This is important because ultimately it is Exchange Online that is responsible for sending the Guest account notifications.

Note that MailUser is hidden from the GAL by default.  (more about that later)

So, all things being equal you now have a Guest Account in Azure AD and a MailUser Exchange Online and everything works tickety-boo.

However for some users they are not receiving notifications. This is because almost certainly there was already another object representing this user’s email address in Exchange Online. It could be a Mail Contact or a Mail User / Mailbox with forwarding to an external email address.

The bottom line is that you cannot have a Guest Account and a recipient in Exchange Online that are sharing the same ExternalEmailAddress. Well almost… there are fudges and workarounds.

Scenarios

1.     Partner Organizations

You have created Contacts for users that you collaborate with over email, then at a later point you add them as a Guest to a Team.

2.     Don’t want Office 365 mail services

We have a client that has a distributed model of loosely coupled organizations maintaining their own IT infrastructure.  A lot are simply using Hotmail, Gmail or other mail services accounts and do not need (or in some cases want) to use Office 365 Mailboxes.  However they do all need to collaborate in a central Teams and SharePoint environment.  To that end, they want their users to consume Teams and SharePoint workloads as Guests, but also have a parent organization email address forwarded to their personal email.

3.     Divestiture

Let’s say a number of users breakaway to form their own company but will maintain close relations, perhaps they are an arm’s reach subsidiary and they therefore won’t be taking their domain name.  We move the mailboxes, convert the legacy mailboxes to Mail-Enabled users, set a forwarding address to a Contact or external email address and hide them from the GAL so that they can maintain inbound email on the legacy Domain and legacy users can see them in the GAL as a Mail Contact and get Free Busy for them if Org Sharing is enabled.

Why not just create a Contact only?  In a Cloud only world you cannot add a proxyAddress on to a Mail Contact with the same value as one of your accepted Domains – unless it is syncing from On-Premises AD via AAD Connect

So they only way for them to maintain the legacy Domain value natively is either a via Mail Enabled User or Mailbox with a forwarder.  You wouldn’t use a Mailbox because that will cost you a license – but you could use a Shared Mailbox – more on that later too.

You could also use a Distribution Group, and their email as a proxyAddress and have a single member be the Contact to the target tenant.

The problem

In any of those cases, there is an object in Exchange Online that contains the recipients external email address.

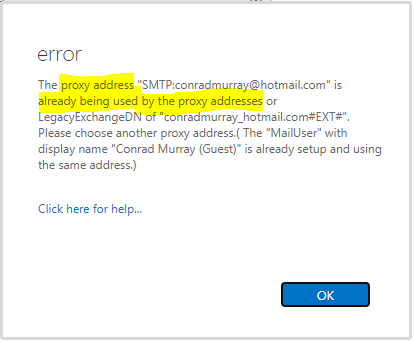

ERROR

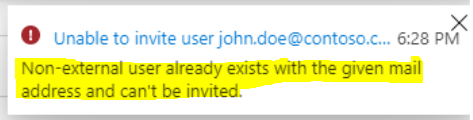

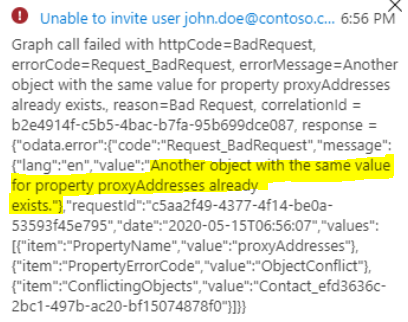

Even if you have a Mail Contact instead of a Mail-Enabled User you won’t be able to:

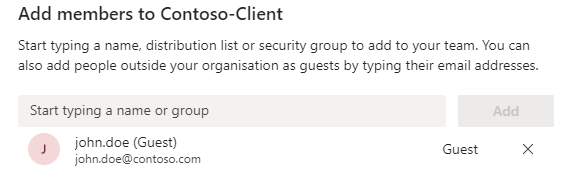

BUT, if I add this user to Microsoft Teams it works.

It does not fail – any error like above would inevitably lead to mass user confusion of course.

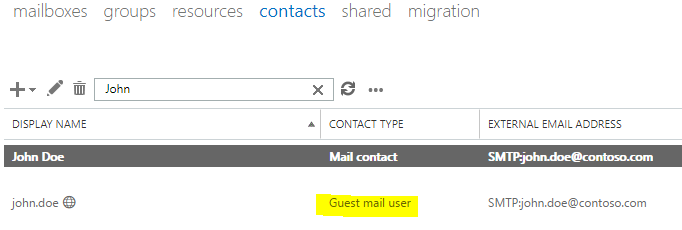

So now we have the Guest and the Mail Contact in Exchange Online.

All good right? Not quite.

So what happens now?

ProxyAddresses

If you look at your AzureADUser object you will see that the ProxyAddresses attribute is empty.

And it is the empty proxyAddress that causes the issues going forward.  This user will never receive notifications.

Solution – Guest Accounts ONLY

Solution, well in short you can’t have a Guest Account plus any other Exchange Online Recipient.  You need to create the Guest Account and have it Shown in the GAL.  you have to do this in two places.

And in Exchange Online

Why twice?  Wll the second command may return no settings have changed, if the AzureAD attribute has flowed.  Previously I have seen it not be flowing, but recently it seems to have been doing its job.

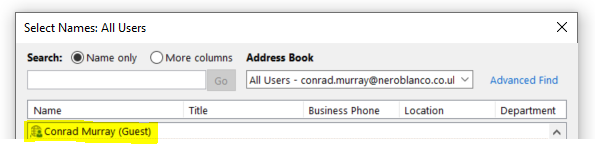

The Guest Account can now be added to Teams, SharePoint, Distribution Groups (via PowerShell) and Azure AD Groups.  Plus it will appear in the GAL.

Other Potential Workarounds

Well, you can actually do two things

1. Create Guest and Contact simultaneously.

If you time it right, you can create the Guest Account before the Contact, but you have to be quick.  Create the Guest Account first and then immediately create the Contact – but you have to beat the Azure Sync clock…

I created my Guest Account

Here is my Mail Contact

but… if you don’t beat the reaper you get this:

Shared Mailbox

Create a Shared Mailbox, use the ForwardingSMTPAddress attribute, then create the Guest Account

Here is my Shared Mailbox

You will note there is no such attribute for ExternalEmailAddress for a Mailbox

Here is my Guest user

Using this method though, I do not see the Guest Account sycn’d to Exchange Online as a MailUser nor any provisioning error.

So, in conclusion, the whole Guest experience and application from Microsoft isn’t great, but once you know what is going on you can unpick it.  Where it gets painful is when you have to start deleting and r-creating Users, because you have to make a note of any Groups and Teams and SharePoint access they previously had and after you put it all back together you need to add them back.
