Configuring IBM Lotus Domino Server for SNMP

<span id="hs_cos_wrapper_name" class="hs_cos_wrapper hs_cos_wrapper_meta_field hs_cos_wrapper_type_text" style="" data-hs-cos-general-type="meta_field" data-hs-cos-type="text" >Configuring IBM Lotus Domino Server for SNMP</span>

Conrad Murray
04 December, 2015

At a recent client engagement, we were asked to configure Domino for SNMP monitoring and alerting – Simple Network Management Protocol https://en.wikipedia.org/wiki/Simple_Network_Management_Protocol

Now, whilst there are some enterprise tools available for Domino Monitoring like GSX http://www.gsx.com/ and Microsoft SCOM Management packs http://www.nice.de/ibm-domino-management-pack sometimes a free tool will give you enough of what you need. This particular client were using Zabbix http://www.zabbix.com across the board as their chosen monitoring tool. For Zabbix to do its thing we needed to enable SNMP on Domino. This Blog does not go into how to configure Zabbix as this was not a requirement on our team.

Enabling SNMP for Domino was reasonably straight forward and here is how you do it.

Step 1 – Add the Windows Feature SNMP

First, you need to add the Windows Feature

You can of course use Windows PowerShell to install it:

Import-Module ServerManager

Get-WindowsFeature
-name SNMP* | Add-WindowsFeature –IncludeManagementTools

Set the Service to Started and Automatic

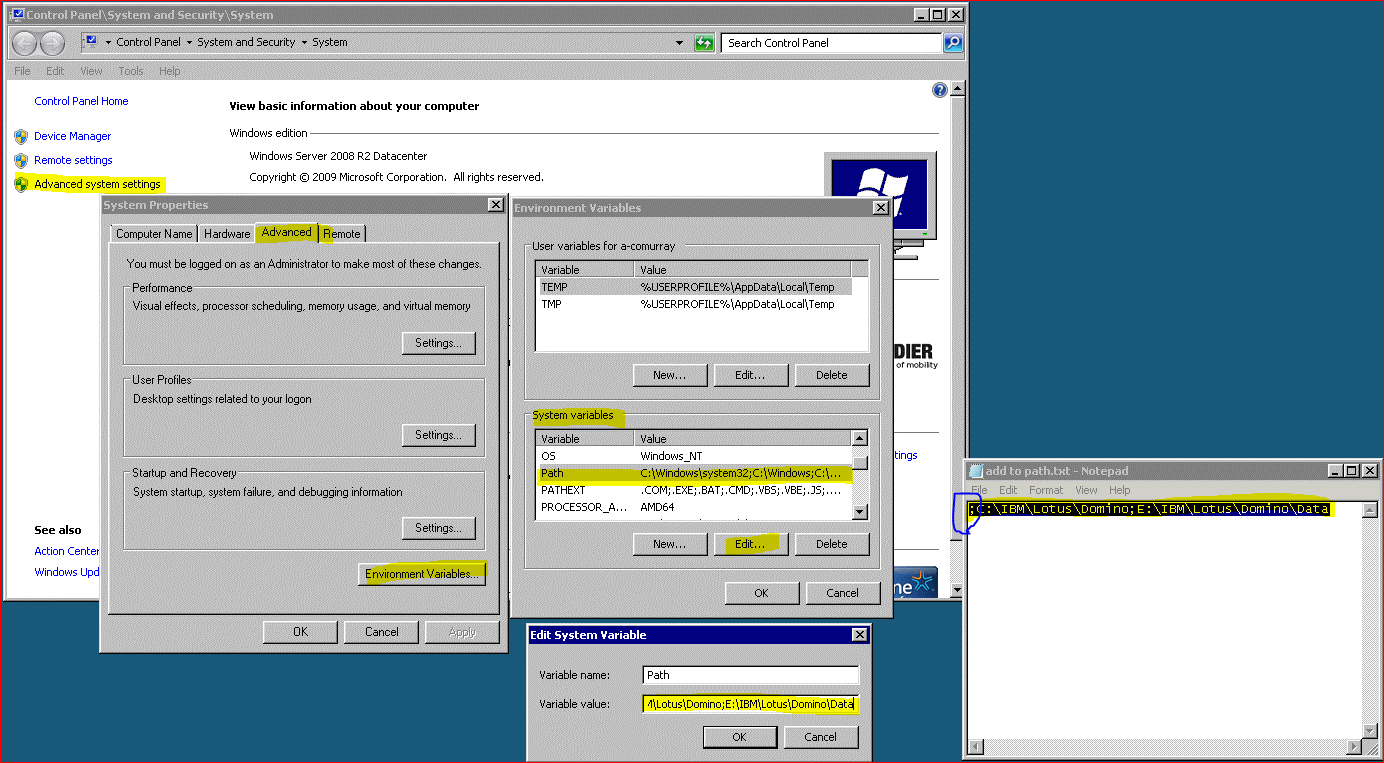

Step 2 – Set the Windows Environmental Path Variable

Then you must ensure that the Domino DLL/EXE directory is on the System Path e.g. C:\IBM\Lotus\Domino\ & E:\IBM\Lotus\Domino\Data

** requires a reboot

Step 3 – Create and Enabled the Lotus Notes SNMP Service

Open a Command Prompt, you will need to ensure you “Run as Administrator”

Change Directory to where Domino is installed. E.g. C:\IBM\Lotus\Domino

Type: lnsnmp.exe –Sc

Set it to Started and Automatic

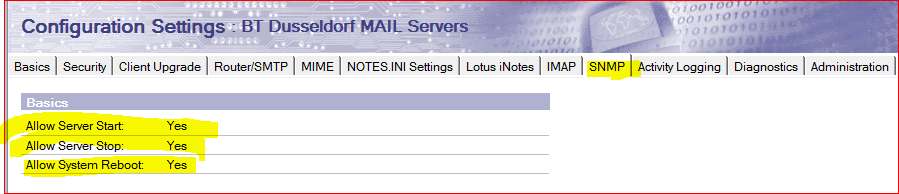

Step 4 – Configure the Domino Server – Server Configuration Document SNMP tab

Optional. This is not a requirement for Monitoring Only.

Now at the Domino Server console you must load the following quryset, intrcpt, collect

Step 5 – Completing the configuration of the Domino SNMP Agent

After you have performed the platform-specific configuration steps, complete the configuration of the IBM Lotus Domino SNMP Agent by following these steps which apply to all platforms. Repeat these steps as necessary for each Domino partition.

Starting the Domino server add-in tasks

To support SNMP queries, start the QuerySet add-in task. Enter this command on the Domino Server console:

load quryset

To support SNMP traps for Domino events, start the Event Interceptor add-in task. Enter this command on the Domino Server console:

load intrcpt

To support Domino statistic threshold traps, start the Statistic Collector add-in task. Enter this command on the Domino Server console:

load collect

Arrange for the add-in tasks to be restarted automatically the next time that Domino is restarted. Add quryset and/or intrcpt and collect to the ServerTasks variable in Domino’s NOTES.INI file.

E.g. ServerTasks=Update,Replica,Router,AMgr,AdminP,CalConn,Sched,HTTP,RnRMgr,LDAP,quryset,intrcpt,collect

References

Final TIP

After enabling all the above you will most likely get a constant annoying “interactive services” dialog box coming to the font of the screen. Something like this:

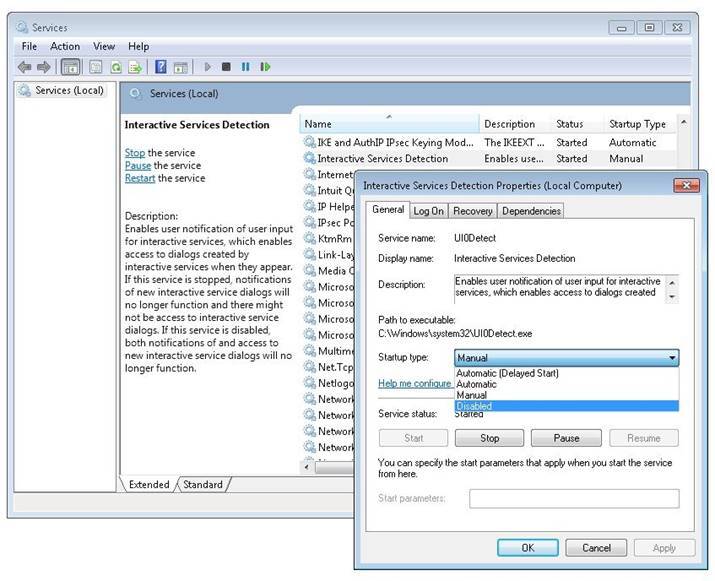

To make this go away you need to disable the Windows Service called: Interactive Services Detection

Good luck!
