Week 3 - Advanced Windows Security Course

<span id="hs_cos_wrapper_name" class="hs_cos_wrapper hs_cos_wrapper_meta_field hs_cos_wrapper_type_text" style="" data-hs-cos-general-type="meta_field" data-hs-cos-type="text" >Week 3 - Advanced Windows Security Course</span>

Twan van Beers
30 December, 2016

Wow the first two weeks have whizzed on by, in fact together with my normal workload I’m struggling to keep up with the pace! So far we have covered

This week we are going to cover

Implementing Security Policy Settings
Offline Access – Threats and Prevention

Implementing Security Policy Settings

Group Policy Object issues

1. The default policy objects have been corrupted, messed up, or lost

dcgpofix can be used to recreate the Default Domain Policy, the Default Domain Controller Policy or both

dcgpofix /target Both

2. Migrating policy objects can be problematic

The policy objects themselves can contain file paths, computer names, user names, SIDs, groups, etc. If so you can use the Migration Table Editor in Group Policy Management Console to replace them with some other text values

3. Troubleshooting with Windows Server 2016

Detect Now button on the Status tab can be used to check the replication of Group Policy Objects

4. Group Filtering

If you remove Authenticated Users then please be aware that Domain Computers need to be able to read the policy object in order to determine if the policy needs to be applied for this user/computer or not. So best practice is to remove Apply GPO from Authenticated Users, or replace Authenticated Users with Domain Computers if we don’t have a cross forest GPO implementation

5. Remote Update

If Remote GPO Updating isn’t working then consider using the starter GPO ‘Group Policy Remote Update Firewall Ports’

6. Group Policy Objects are not applying

RPC may have been locked down on the Domain Controller that you are trying to get the Group Policy Objects from

Group Policy Objects settings

From a security perspective the interesting areas include

Advanced Audit Policy Configuration
User Rights Assignment
Security Options

Specific settings that are of interest

Deny Logon Locally

Add any service account, and also set Workstations in AD Users and Computers to restrict the service account only to the servers it is meant for

Deny access to this computer from the network

Add ‘Local Account’ as best practice, ‘Local account and member of Administrator group’ for Windows clusters, or at least the Administrator account to mitigate Pass-the-Hash attacks. Install KB2871997 for Windows 7 and 8
Add Domain Admins, Schema Admins and Enterprise Admins for everything except Domain Controllers, to mitigate credential theft and Pass-the-Ticket attacks for these accounts

Configure Logon Script Delay

The setting Configure Logon Script Delay is set to 5 minutes by default. If you want to make it more immediate (although the question might be why are you using a logon script) then set it to 0

Always wait for the network at computer startup and logon

The setting Always wait for the network at computer startup and logon is set to Disabled by default. You can set it to Enabled however that does mean that GPOs wait for the network to be available and then apply synchronously. This can literally add minutes to a logon process…

Group Policy Preferences issues

1. GPP User name and Password information are decryptable

GPP can contain user name and password for things like Scheduled Tasks, Data Sources, Drives, etc. These settings need to be able to be decrypted by the target machine which is applying the policy object, and of course that means that we can decrypt it too (or a hacker can) To make it easy you can even get the script from GitHub!

2. Internet Explorer Settings

Historically IE had its own set of settings per version. As of IE10 the Internet Explorer settings actually apply to IE10 and over

Best practices for Group Policy Objects

1. Back them up regularly

You can back up all Group Policy Objects via the Group Policy Management Console, or with PowerShell

Get-GPO | Backup-GPO -Path c:\GPOBackup

2. Use tools to check on AD

AD Tidy can be used to check password age, and other user and computer specific settings
AD Info can be used to check on Group Policy Objects

3. Use Group Policy Results

Use the Group Policy Results MMC to check on which policies have been or will be applied to a given user and computer (you can even see what will happen if you move the user or computer to another OU, add/remove groups, etc.)

4. Use PowerShell to keep GPOs tidy

Import-Module GroupPolicy

Find all empty GPOs

Get-GPO -All | ? ( { [xml]$gpo = Get-GPOReport $_.ID -ReportType xml; $gpo.GPO.Computer.ExtensionData -eq $Null -and $gpo.GPO.User.ExtensionData -eq $Null } ) | sort DisplayName | ft DisplayName

Find all GPOs with all Settings Disabled

Get-GPO -All | ? { $_.GpoStatus -eq 'AllSettingsDisabled' } | sort DisplayName | ft DisplayName

Find all Non-linked GPOs

Get-GPO -All | ? { (Get-ADObject -Filter ( "GpLink -like '*{0}*' -f $_.ID ) ) -eq $null } | sort DisplayName | ft DisplayName

Implementing Advanced GPO Management (AGPM)

AGPM is available to customers who have Software Assurance since AGPM is part of the Microsoft Desktop Optimization Pack (MDOP) Implementing AGPM requires the following steps:

Install the AGPM Server software
Assign the AGPM Administrator role to an account or group
Run AGPM and assign the other AGPM roles
Install the AGPM Client software
Configure AGPM and delegate access to GPOs by assigning roles to other accounts

Some features or flows that are available within AGPM once deployed

Request the creation of a GPO, which must be approved by someone with the Approver role
Check the GPO out of the archive, edit the GPO, check the GPO into the archive and request deployment of the GPO, which must then be approved by someone with the Approver role
Review the GPO and deploy it to your production environment
Create a GPO template and use it as a starting point to create a new GPO
Delete and Restore a GPO

Offline Access – Threats and Prevention

What is Bitlocker

Technology that helps to protect data from being accessed by unauthorized users who come into possession of lost, stolen or improperly decommissioned computers.
Technology that validates the integrity of the early startup components before allowing the operating system to start
Full drive encryption technology

What is a Trusted Platform Module (TPM)

Smartcard-like module on the motherboard
Performs cryptographic functions
Holds platform measurements (hashes)
Can create, store and manage keys
Protects secrets and protects itself against attacks

Platform Configuration Register (PCR)

BitLocker relies on the system being able to verify that it hasn’t been changed. The TPM stores 24 Platform Configuration Registers which contains a measurement from when the system was shutdown and which the system checks when it starts. If anything in those registers comes up as having been changed, and the Validation Profile includes any register that has been changed, then the system will prompt for the Recovery Password before unlocking the protected drive.

The list of PCRs is as follows

0: Core Root of Trust of Measurement (CRTM), BIOS, and Platform Extensions
1: Platform and Motherboard Configuration and Data
2: Option ROM Code
3: Option ROM Configuration and Data
4: Master Boot Record (MBR) Code
5: Master Boot Record (MBR) Partition Table
6: State Transition and Wake Events
7: Computer Manufacturer-Specific
8: NTFS Boot Sector
9: NTFS Boot Code
10: Boot Manager
11: BitLocker Drive Encryption Access Control
12: Defined for use by the static operating system
13: Defined for use by the static operating system
14: Defined for use by the static operating system
15: Defined for use by the static operating system
16: Used for debugging
17: Dynamic CRTM
18: Platform defined
19: Used by trusted operating system
20: Used by trusted operating system
21: Used by trusted operating system
22: Used by trusted operating system
23: Application support

By default only PCRs 0, 2, 4, 5, 8, 9, 10 and 11 are included in the validation profile. You can add more of them via Group Policy however it makes the system more susceptible to prompting for a recover password following a system change.

Before you make any changes that may affect your chosen PCRs it is prudent to pause BitLocker and then resume it after you have made the changes and rebooted. This will ensure that BitLocker is aware of the changes and that they were made legitimately. If you don’t then you may find BitLocker asking for the recovery password (and sometimes it will keep doing that on every reboot)

manage-bde -pause C:

make the changes and reboot

manage-dbe -resume C:

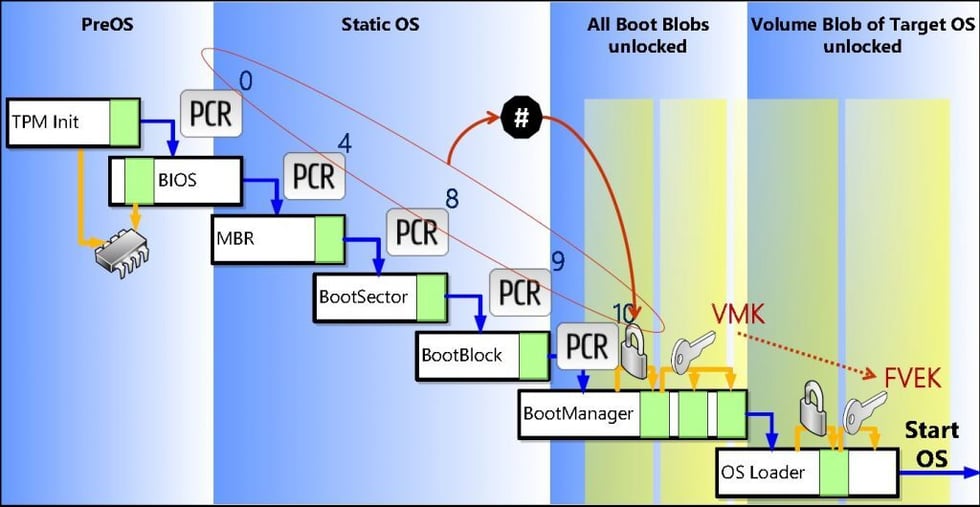

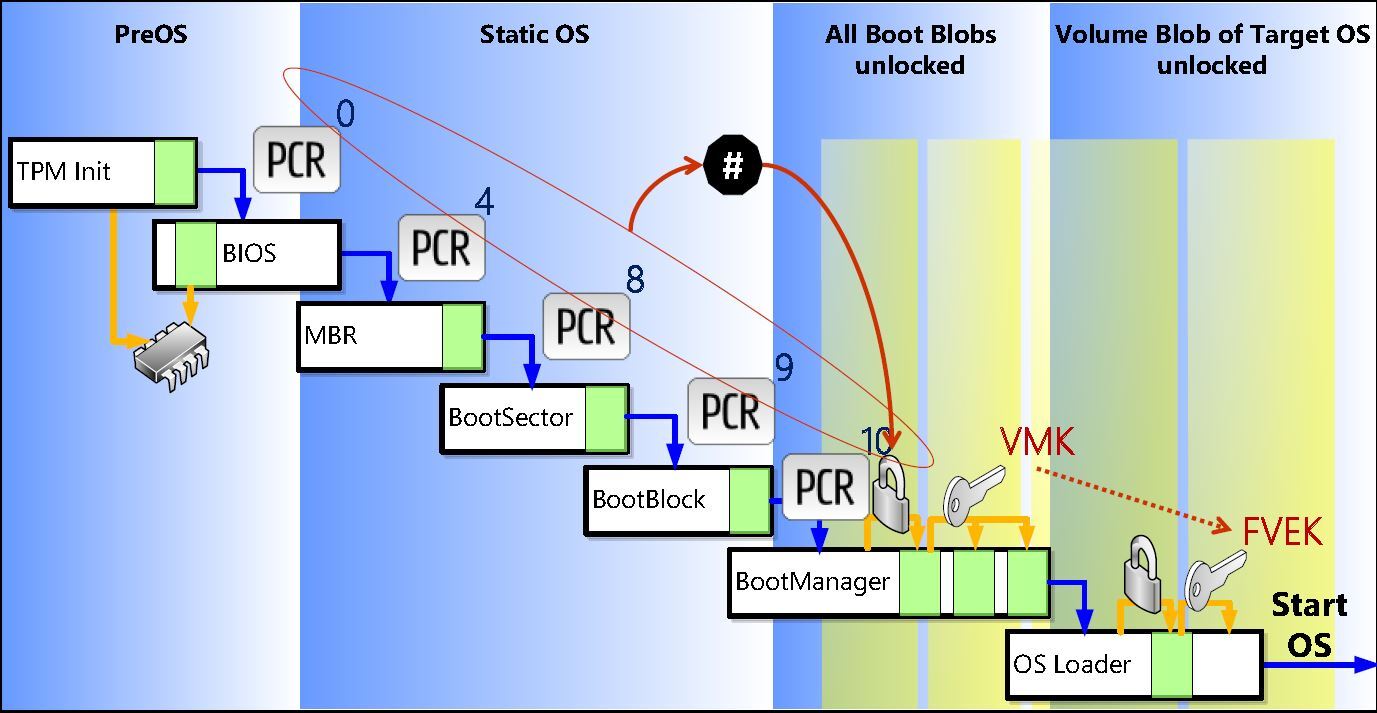

BitLocker Boot Process

PCR is Platform Configuration Register
VMK is the Volume Master Key
FVEK is the Full Volume Encryption Key

Disk Layout and Key Storage

SRK is held in the TPM (which is a calculated value based on the validated PCRs)
SRK encrypts the VMK (which is used for encrypting the FVEK)
VMK encrypts the FVEK (which is used for encrypting data)
FVEK and VMK are stored encrypted on the Operating System Volume

Key Protectors

Some key protectors include:

TPM Only – vulnerable to hardware attacks, no impact for the user
TPM plus PIN – vulnerable to hardware attacks, user must enter PIN at boot
TPM plus USB – vulnerable to stolen USB key, user must protect the USB key
TPM plus USB plus PIN – not vulnerable, user must protect the USB key and enter PIN at boot
USB only – vulnerable to stolen key (no boot validation), user must protect USB key

There are many more including Certificate, Recovery Key, Recovery Password, Clear key, Password, etc.
